Eng T 103 Project Inn Revit
In this project I created a 3D model of an Inn using Revit.
Drawn by: Ben Pilloud 11/27/2021

Slide1
*Details in the notes.

Slide2

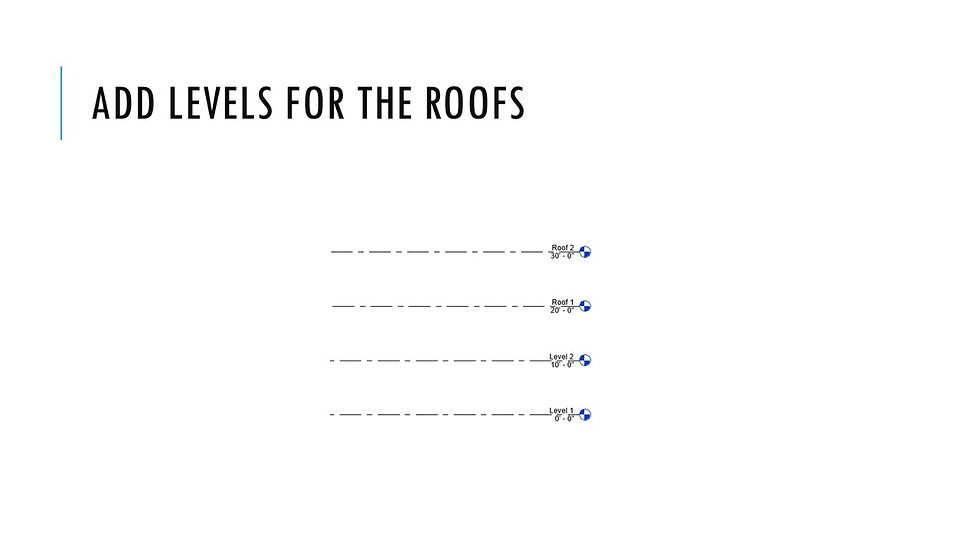

The default architectural template starts with 2 levels. This structure needs two more levels for the roofs.

Slide30
Camera sets up a temporary view inside the model. Elevation views can point north, south, east, or west, and are added to the project browser. These views can be useful for seeing details, like the height of the mirror or if the windows line up behind the bar.

Slide1
*Details in the notes.
